These high tensile anchor bolts, as their name implies, are designed to fit "through" the fixture using the same drill size and body diameter. This allows you to place your bracket or baseplate, drill straight through it into the concrete, and install the anchor bolt without having to move it. This makes them ideal for installing structures, assemblies, and fabrications that are already in place and cannot be moved.
×
Recommended Products
Fasten Up

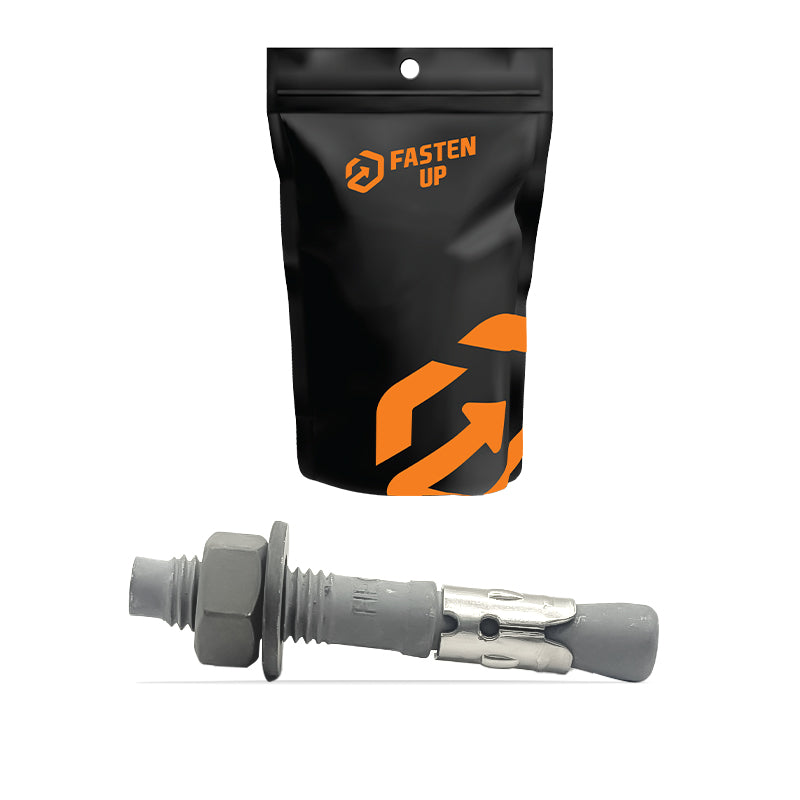

Through Bolts Galvanised 8 x 90mm - Pack 5
Through Bolts Galvanised 8 x 90mm - Pack 5
Regular price
$9.45
Regular price
Sale price
$9.45
Unit price
per
Taxes included.
Couldn't load pickup availability
These high tensile anchor bolts, as their name implies, are designed to fit "through" the fixture using the same drill size and body diameter. This allows you to place your bracket or baseplate, drill straight through it into the concrete, and install the anchor bolt without having to move it. This makes them ideal for installing structures, assemblies, and fabrications that are already in place and cannot be moved.
Free ShippingFor all orders over $99
Super Low PricesEvery day
Fast DispatchShip within 24 hours
Customer SupportAssist with any enquiries
×
Product Enquiry
You are enquiring about
Anchor Bolts FastenersThrough Bolts Galvanised 8 x 90mm - Pack 5
Description
Features
- Simple Through fixing, eliminating the need for setting or marking out.
- High strength solid steel shanks.
- Fast and easy to install, simply push though the fixture, tap into a clean drill hole and tighten.
- Hot Dip Galvanised for higher corrosion protection for external applications.
Specifications
| Quantity | 5 |
| Anchor Diameter | 16mm |
| Length | 150mm |
| Effective Anchor Depth | 80mm |
| Wrench Diameter | 24mm |
| Washer Diameter | 29.8mm |
| Recommend Tension Load 32MPa (60mm embedment) | 9.0kN |
| Minimum Edge and Spacing Distance | 110mm |
