Sleeve anchor eyebolts are engineered for quick and effective installation in masonry and concrete. When the nut is tightened, the anchor expands against the base material, ensuring a strong connection that effectively distributes load-bearing weight. These all-steel anchors feature collapsible full-length sleeves that distribute expansion forces evenly, preventing point loads, particularly beneficial for hollow brick applications. Installation is straightforward—simply drill a hole to match the diameter of the sleeve, hammer the anchor through your fixture, and tighten the nut for a secure hold.
×

×
Product Enquiry
You are enquiring about

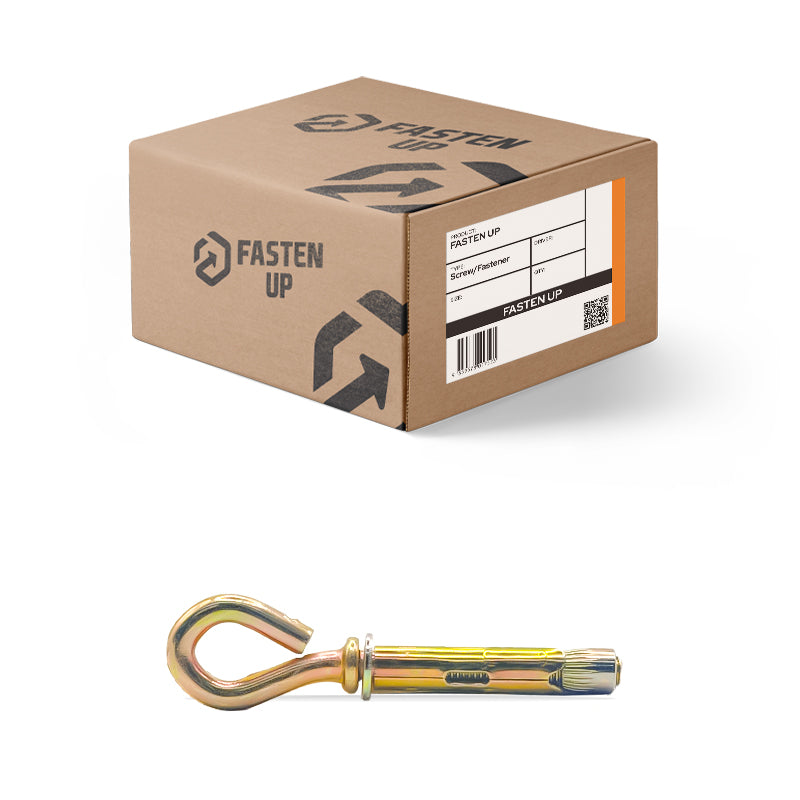

Anchor Bolts FastenersSleeve Anchor Eyebolts 8 x 40mm Zinc Box 50
Description
Features
- The design allows for even distribution of forces, minimizing point loads.
- Ensures durability and reliability for a variety of masonry applications.
- Requires only drilling and hammering for a quick setup.
Specifications
Quantity | 50 |
Anchor Diameter | 8mm |
Drill Size | 8mm |
Length | 40mm |
Finish | Gold Zinc Plate |
Effective Anchor Depth | 40mm |
Thread Size | M6 |
3.2kN | 0.8kN |
Recommend Tension Load 32MPa Eye | Recommend Tension Load 32MPa Body |
Eyelet Diameter | 10mm |
