Fasten Up screw bolts are high-strength concrete and masonry screw anchors with helical threads that, when tightened, allow the bolt to cut its own thread in the concrete and masonry. Since these anchors don't expand and no plugs are needed, they are perfect for use in concrete and masonry where cracking may be an issue. For internal and external bolting and fastening of engineering and construction components where authorised anchors might not be needed, our galvanised roundhead concrete screw bolt contractor line is made to provide a visually appealing end product and a non-intrusive, non-trip hazard anchoring option.
×

×
Product Enquiry
You are enquiring about

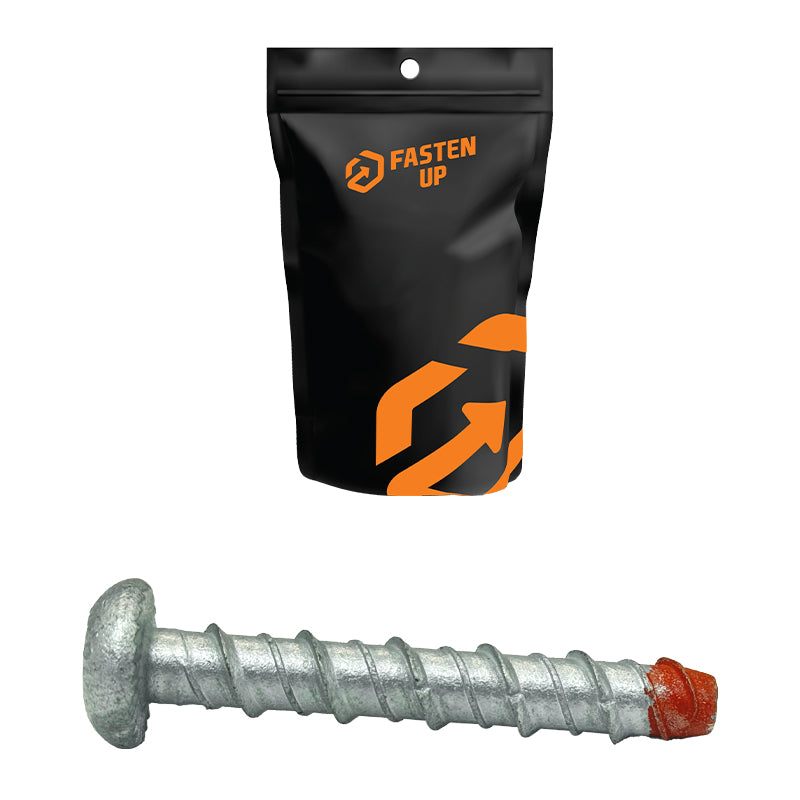

Concrete Screws and Screw BoltsScrew Bolt Dome head 10 x 150mm T50 - Pack 5
Description
Features
- Cost effective contractor quality range for typical construction fixing and bolting applications.
- Dome Head with under head milled face to grip and spread the fixing load evenly without a washer.
- Galvanised for external use and high quality corrosion protection.
Specifications
Quantity: | 5 |
Shank Diameter: | 10mm |
Drill Size: | 10mm |
Length: | 150mm |
Effective Anchor Depth: | 50mm |
Driver: | T50 |
Head Diameter: | 22mm |
Recommend Tension Load 32MPa (25mm Embedment): | 4.8kN |
Recommend Tension Load 32MPa (60mm Embedment): | 13.6kN |
Finish: | Mechanical Galvanised |
