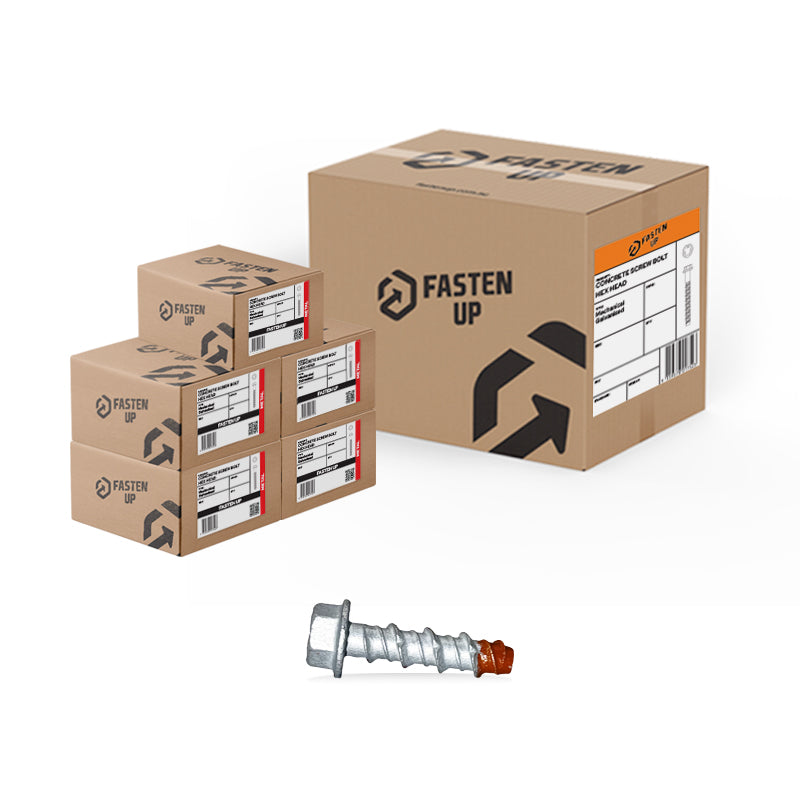

These concrete screw bolts are designed for reliable and cost-effective fastening into concrete and masonry. With a deep-cut helical thread that cuts its own path, these anchors ensure a solid hold without the need for expansion plugs. The galvanised coating offers excellent protection from corrosion, making them suitable for both indoor and outdoor applications. Perfect for construction and engineering tasks that don't require certified anchors, these bolts are easy to install with a hex head driver.
×

×
Product Enquiry
You are enquiring about
Concrete Screws and Screw BoltsScrew Bolt Contractor Gal 6 x 30mm - Carton 200
Description
Features
- Zinc-plated finish ensures corrosion resistance for internal applications.
- Flanged hex head provides easy installation and even loads distribution.
- Deep-cut threads offer a secure and stable hold in masonry and concrete.
Specifications
Quantity | 200 |
Shank Diameter | 6mm |
Drill Size | 6mm |
Length | 30mm |
Effective Anchor Depth | 25mm |
Wrench Size | 10mm |
Head Flange Diameter | 13.7mm |
1.3kN | 6.0kN |
Recommended Tension Load 32MPa (60mm Embedment) | Recommended Tension Load 32MPa (25mm Embedment) |
Finish | Mechanical Galvanised |
